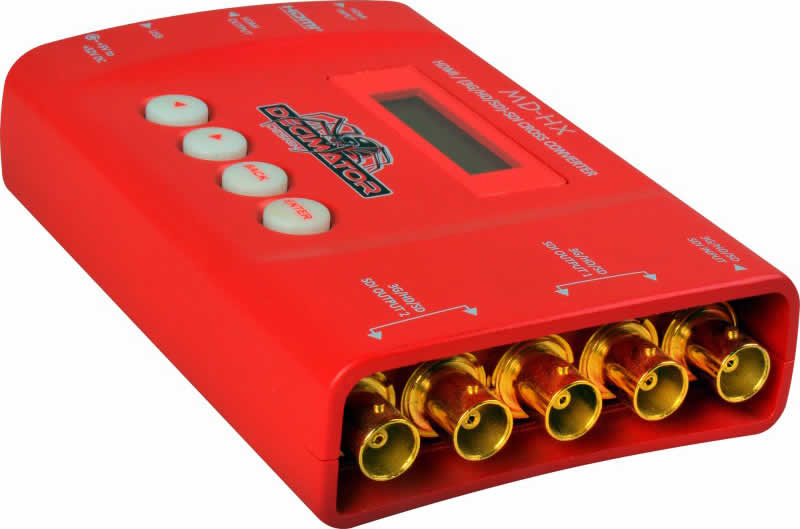

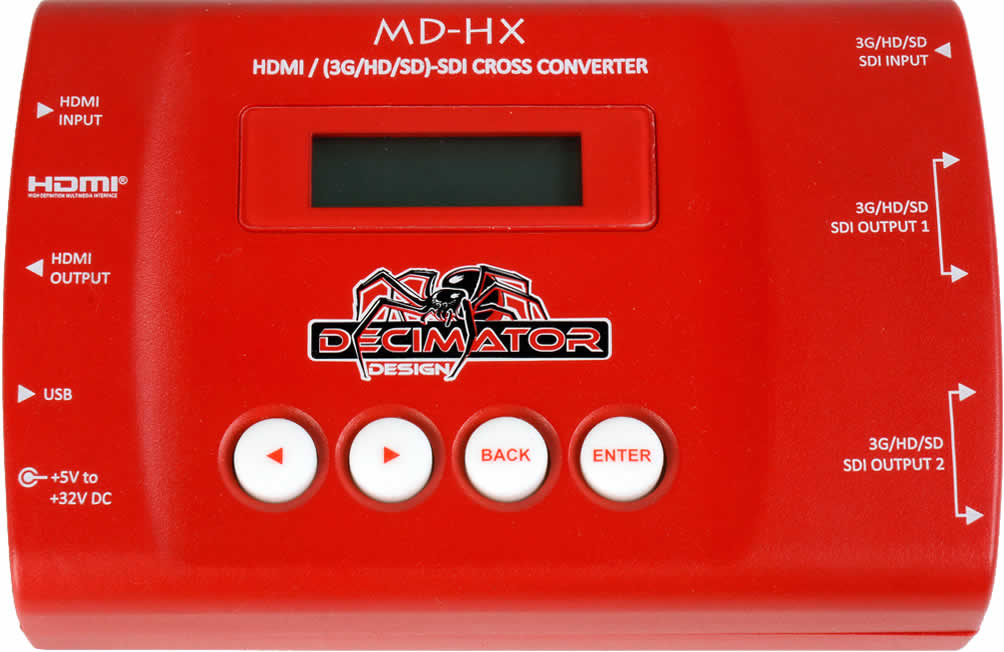

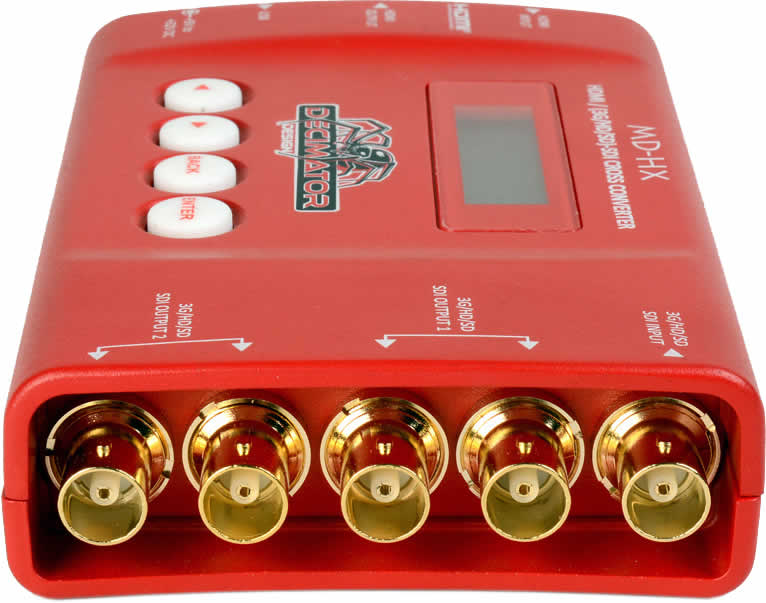

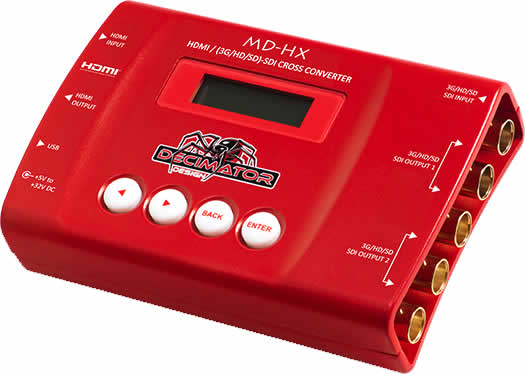

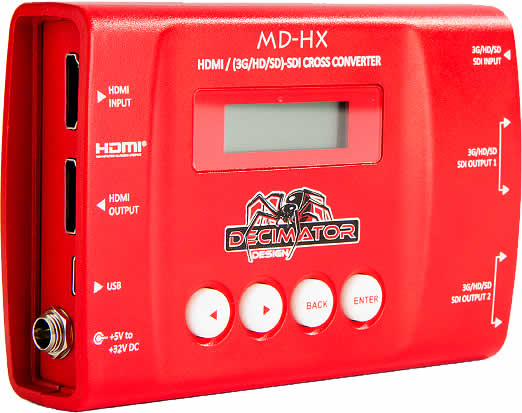

Decimator - MD-HX

Support both 3G level A and B on the input and output.Allowing conversion between A and B.Horizontal and/or Vertical image flipping via the built in scaler.Combines several converters for the price of one  (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)Robust Aluminium Case with easy to use LCD and button control system.Features the following 14 modes:

SDI IN to HDMI and SDI OUT
SDI IN to SDI OUT and HDMI IN to HDMI OUT
SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
HDMI IN to SDI OUT and SDI IN to HDMI OUT
HDMI IN to HDMI and SDI OUT
HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
Scaled SDI IN to HDMI and SDI OUT
Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
Scaled HDMI IN to HDMI and SDI OUT

4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.The audio pairs in the SDI and HDMI outputs can be rearranged as required.Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.This unit also includes:

USB port for control and firmware updates
New Metal Thread Locking DC Power Socket
Power Supply, HDMI Cable and USB Cable
